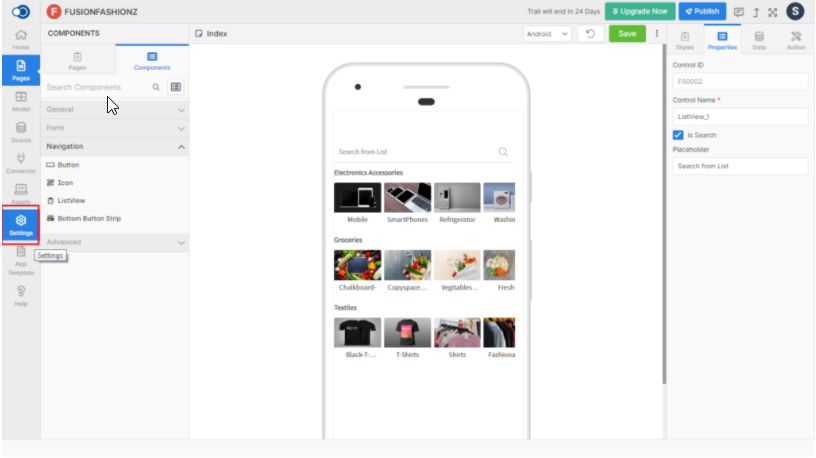

App Settings are the essential elements for ensuring the compatibility of the designed app in a variety of mobile platforms. Following are the different settings to be handled before publishing the app.
General
Generic details of the designed app including Display Name, Logo, Description, Orientation available, Framework Version, Language supported, etc are captured here. You can update the details as per the requirements whenever necessary.

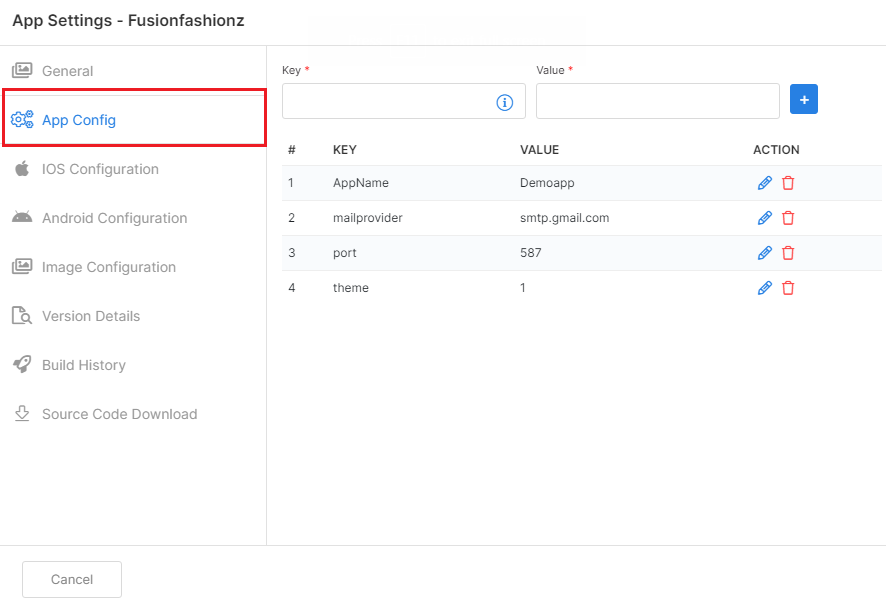

App Config
This feature allows app users to configure variables or keys that are used globally, so that wherever the variable or key is called, the value defined gets posted. For E.g. Wherever the Key – AppName is used, the value for it will be Demo App.

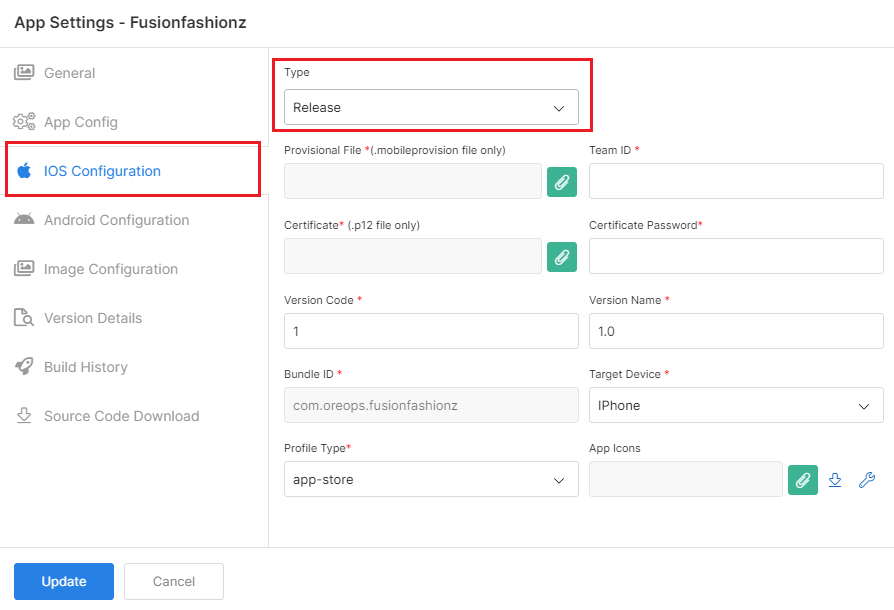

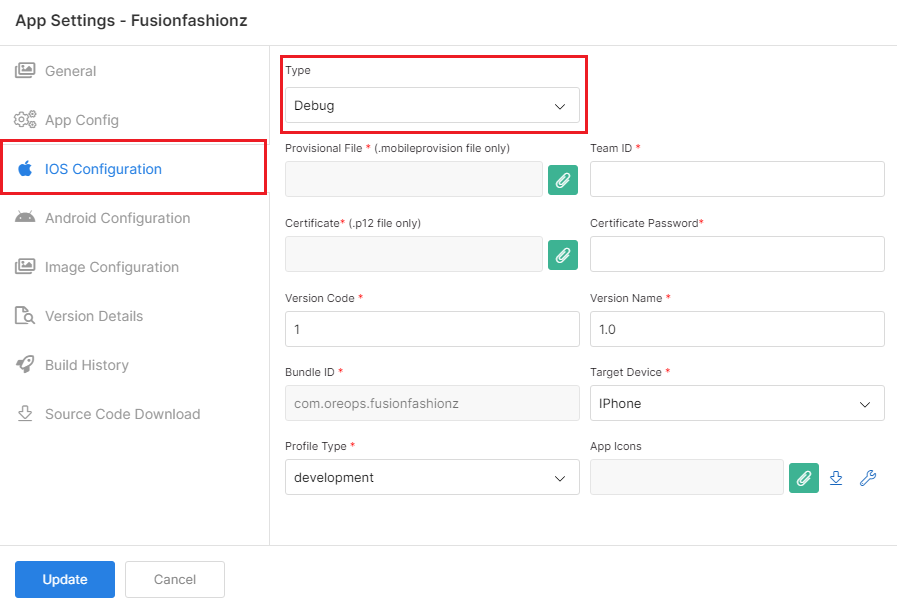

iOS Configuration
Update the configuration details in both Debug and Release modes with the relevant details.
Parameters | Description | Required / Optional | Applicable For |
---|---|---|---|
Provisional File | Mobile provisional file to upload the app in App Store | Required | Debug, Release |
Team ID | Unique ID for the file | Required | Debug, Release |
Certificate | Certificate file to be uploaded | Required | Debug, Release |
Certificate Password | Password for the certificate file | Required | Debug, Release |
Version Code | Code number for the debug version of the code | Required | Debug, Release |
Version Name | Version name for the debug version of the code | Required | Debug, Release |
Bundle ID | Unique ID required to upload the code in the Play store | Required | Debug, Release |
Target Device | Device compatible to use the code. Choose the device from IPhone, IPad or Universal (both IPhone and IPad) | Required | Debug, Release |
Profile Type | Profile type suitable for the code. Debug mode – Development Release mode – Ad-hoc or App-store | Required | Debug, Release |
App Icons | Icon to be used for display in the mobile device | Required | Debug, Release |
Keystore file | Keystore file required to upload the code in the Play store | Required | Release |
Username / Key Alias | Unique username required to upload the code in the Play store | Required | Release |
Store Password | Store Password to upload the code in the Play store | Required | Release |
Key Password | Key Password to upload the code in the Play store | Required | Release |

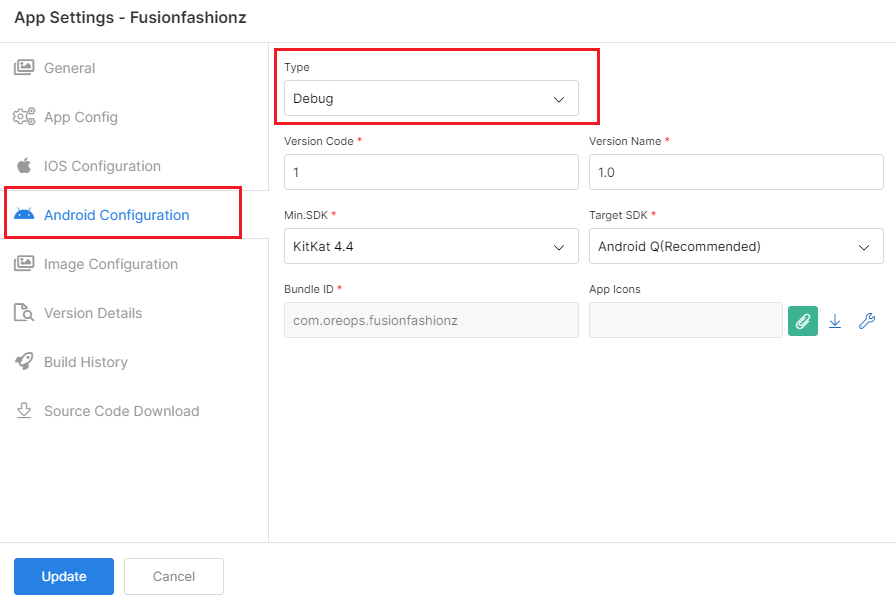

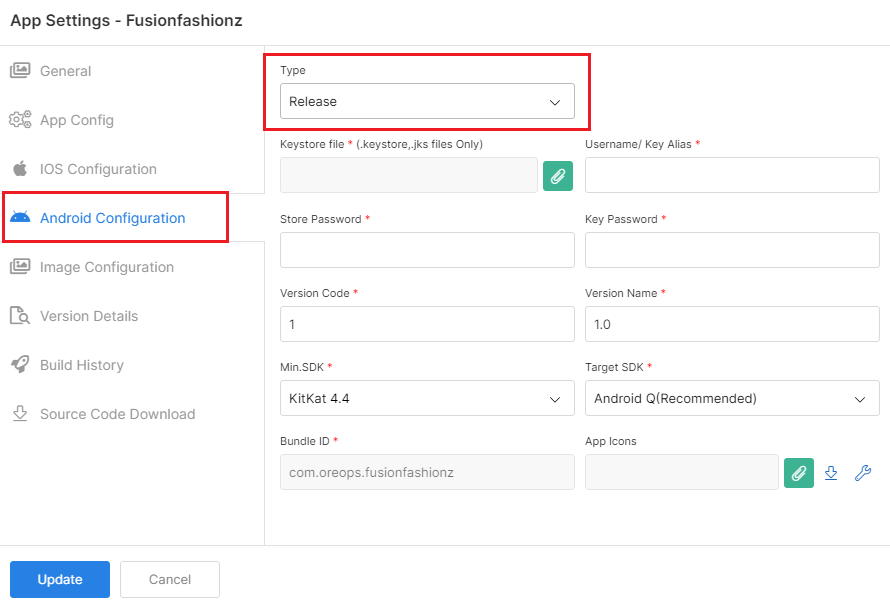

Android Configuration
Update the configuration details in both Debug and Release modes with the relevant details.
Parameters | Description | Required / Optional | Applicable For |
---|---|---|---|
Version Code | Code number for the debug version of the code | Required | Debug, Release |
Version Name | Version name for the debug version of the code | Required | Debug, Release |
Min. SDK | Least or Minimum OS version supported by the code | Required | Debug, Release |
Target. SDK | Maximum OS version supported by the code | Required | Debug, Release |
Bundle ID | Unique ID required to upload the code in the Play store | Required | Debug, Release |
App Icons | Icon to be displayed on the mobile device | Required | Debug, Release |
Keystore file | Keystore file required to upload the code in the Play store | Required | Release |
Username / Key Alias | Unique username required to upload the code in the Play store | Required | Release |
Store Password | Store Password to upload the code in the Play store | Required | Release |
Key Password | Key Password to upload the code in the Play store | Required | Release |

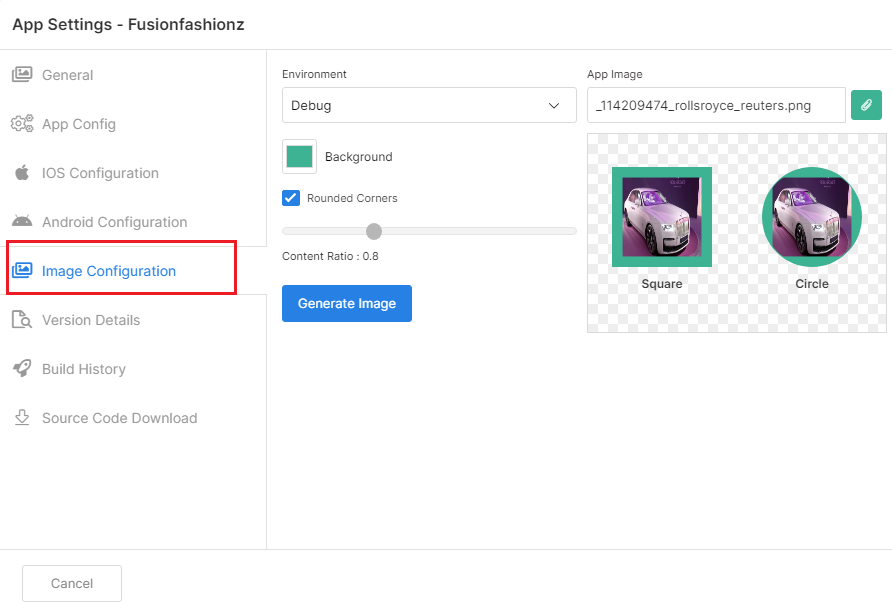

Image Configuration
Generate the images to be displayed in the Apps using this feature. Choose the environment either as Release or Debug and select the image to be uploaded.
Click on the checkbox against Rounded Corners if the image has to be displayed with rounded corners and click on Generate Image to generate the required image.
App Icons
Icons displayed against the apps in mobiles differ for every model. So the app users can use the icons with a sample structure that is downloaded by clicking on the Download icon as shown below.
The sample structure is downloaded as a zip file in the name of Android. The zip file contains a sample image and few folders with which the app users can create the icons and upload them into the App Icons.

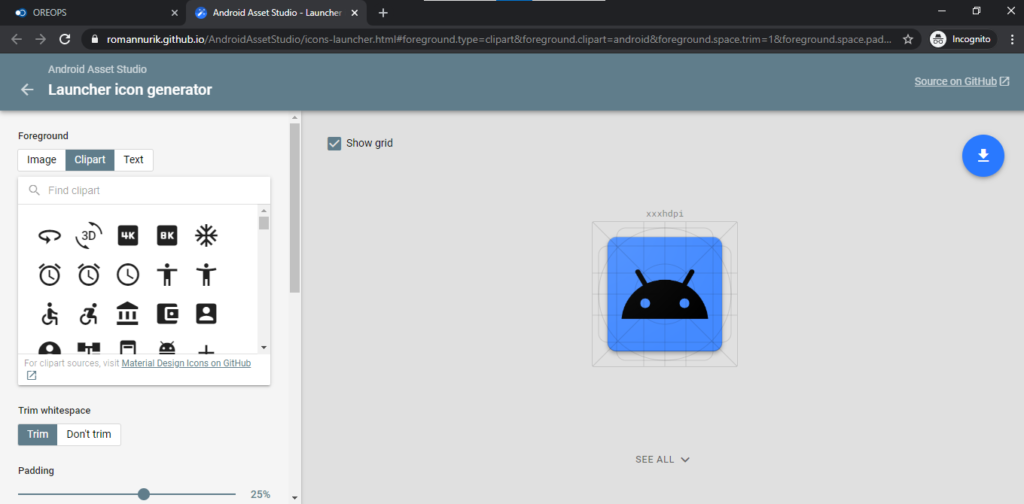

Also, the users can upload an image to be used in the app icon by clicking on the Tools symbol next to the download icon, which redirects the user to a URL for designing the icons.
Choose the icon and resize it accordingly, then download it as a zip folder and upload it in the App Icons to be used in the display.

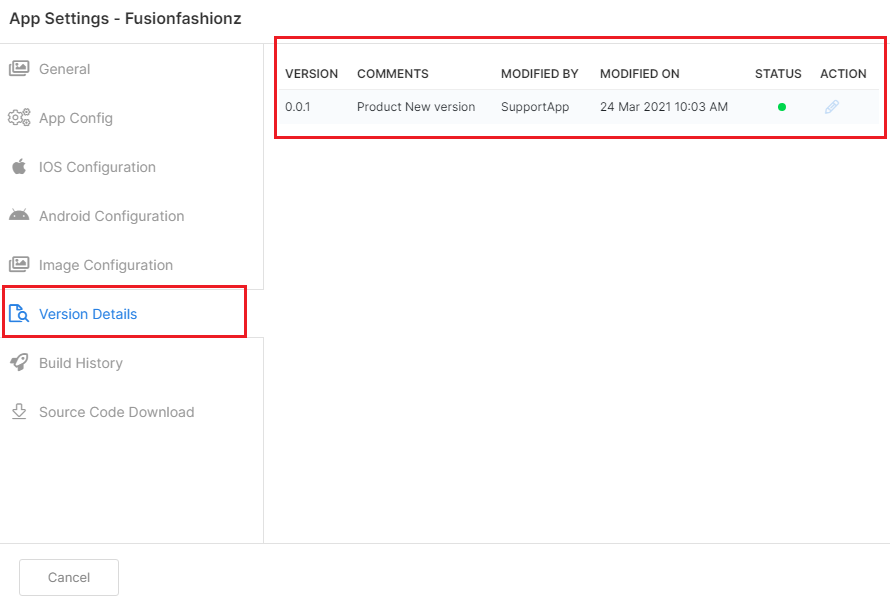

Version Details
Version details of the designed application are displayed here. The Green color indicates that the version is active.

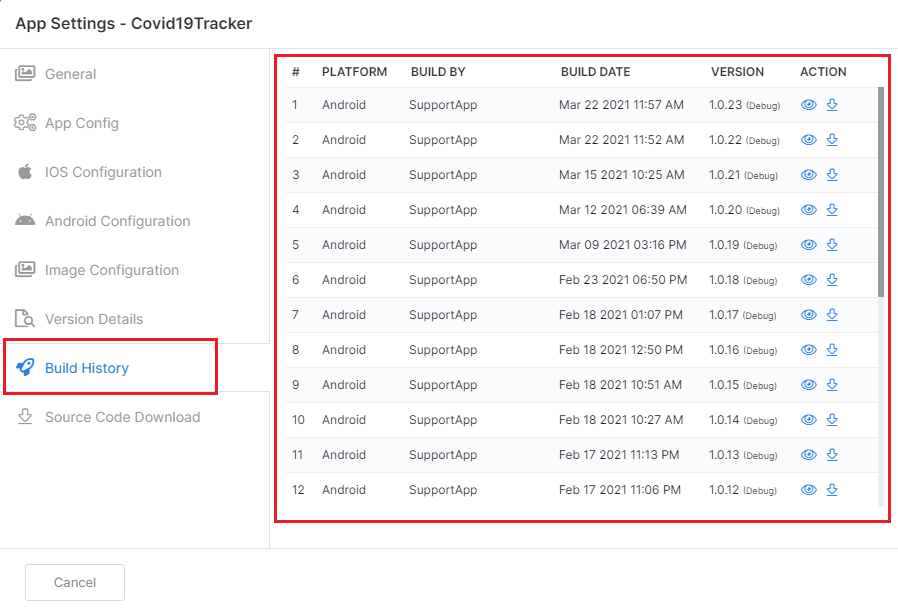

Build History
As the name indicates, the History of the builds generated along with the Platform, Version, Date and Time are indicated here. The download symbol against the version allows you to download the specific version.

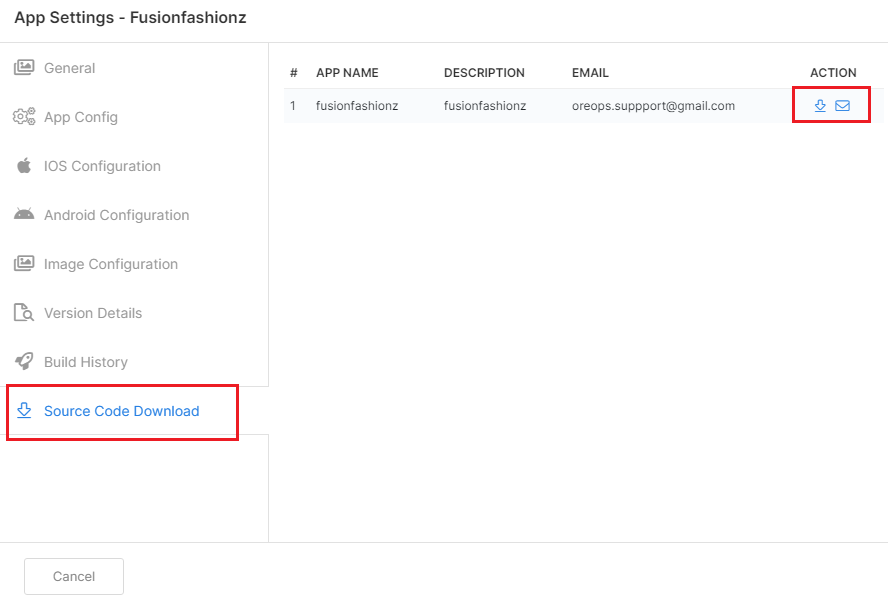

Source Code Download
Source Code Download feature allows you to download the source code either directly or through Email.
